The Next Generation Lead-Free Solder Paste
DKL Metals, in conjunction with Nihon Superior, are proud to announce the launch of a revolutionary new lead-free solder paste — SN100CV P608 D4.
Built on the patented SN100CV alloy formulation, this innovative product is designed as a direct drop-in replacement for traditional SAC305 alloys. With silver prices at record highs, switching to SN100CV offers exceptional performance without the cost burden associated with silver-bearing solders.
Like the rest of the SN100 range, it is a patented product and only available from licensed distributors.
Technical Specifications
| Specification | Details |
|---|---|
| Product Number | SN100CV P608 D4 |
| Variation | D4 (Type 4) |
| Application | General-purpose (D4) |
| Type and Features | Silver-free, Completely halogen-free, High strength, Low voiding |
| Alloy Composition | Sn-0.7Cu-0.05Ni-Ge-Bi |
| Melting Point | 221-225℃ |
| Flux | P608 |
| Flux Category | ROL0 |
| Presence of Halogen Elements | Completely halogen-free |
| Particle Size | D4 (Type 4): 20-38µm |
Features and Benefits of SN100CV P608 D4 Solder Paste
Features
- Drop-in replacement for SAC305 alloy pastes
- Silver-free alloy formulation
- Proven SN100CV alloy base
- 12-month shelf life
Benefits
- No alteration to reflow profile or printing parameters
- Significant cost savings and enhanced long-term joint reliability
- Higher mechanical strength and thermal fatigue resistance for superior reliability compared to SAC305
- Reduced wastage and improved process efficiency
A Smarter, More Reliable Alternative
SN100CV P608 D4 doesn’t just lower production costs, it delivers greater reliability in demanding soldering environments. Its enhanced microstructure provides better resistance to thermal cycling and mechanical stress, ensuring durable and stable connections over time.
Now is the perfect opportunity to bring these advantages to your production line.
Reduces voiding compared to conventional products
Completely halogen-free solder paste that reduces voids, which cause critical problems in mounting. It exhibits wetting equivalent to or better than that of halogen-containing products. It contains a silver-free, high strength alloy.

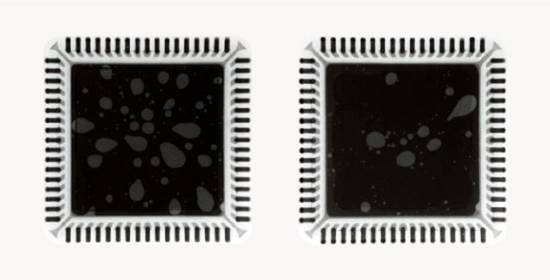

Picture (Left): conventional product used (x-ray photo taken after reflow)
Picture (Right): P608 used (x-ray photo taken after reflow)
